GPU Sharing User guide

Important Note​

Note GPU sharing is deprecated in volcano v1.9, recommended to use the Volcano VGPU feature, which is provided by HAMI project, click here

Environment setup​

Install volcano​

1. Install from source​

Refer to Install Guide to install volcano.

After installed, update the scheduler configuration:

kubectl edit cm -n volcano-system volcano-scheduler-configmap

For volcano v1.8.2+(v1.8.2 excluded), use the following configMap

kind: ConfigMap
apiVersion: v1
metadata:
  name: volcano-scheduler-configmap
  namespace: volcano-system
data:
  volcano-scheduler.conf: |
    actions: "enqueue, allocate, backfill"
    tiers:
    - plugins:
      - name: priority
      - name: gang
      - name: conformance
    - plugins:
      - name: drf
      - name: deviceshare
        arguments:
          deviceshare.GPUSharingEnable: true # enable gpu sharing
      - name: predicates
      - name: proportion
      - name: nodeorder
      - name: binpack

For volcano v1.8.2-(v1.8.2 included), use the following configMap

kind: ConfigMap
apiVersion: v1
metadata:
  name: volcano-scheduler-configmap
  namespace: volcano-system
data:
  volcano-scheduler.conf: |
    actions: "enqueue, allocate, backfill"
    tiers:
    - plugins:
      - name: priority
      - name: gang
      - name: conformance
    - plugins:
      - name: drf
      - name: predicates
        arguments:
          predicate.GPUSharingEnable: true # enable gpu sharing
      - name: proportion
      - name: nodeorder
      - name: binpack

2. Install from release package​

Same as above, after installed, update the scheduler configuration in volcano-scheduler-configmap configmap.

Install Volcano device plugin​

Please refer to volcano device plugin

  • By default volcano device plugin supports shared GPUs, users do not need to config volcano device plugin. Default setting is the same as setting --gpu-strategy=share. For more information volcano device plugin configuration

Verify environment is ready​

Check the node status, it is ok if volcano.sh/gpu-memory and volcano.sh/gpu-number are included in the allocatable resources.

$ kubectl get node {node name} -oyaml
...
status:
  addresses:
  - address: 172.17.0.3
    type: InternalIP
  - address: volcano-control-plane
    type: Hostname
  allocatable:
    cpu: "4"
    ephemeral-storage: 123722704Ki
    hugepages-1Gi: "0"
    hugepages-2Mi: "0"
    memory: 8174332Ki
    pods: "110"
    volcano.sh/gpu-memory: "89424"
    volcano.sh/gpu-number: "8"    # GPU resource
  capacity:
    cpu: "4"
    ephemeral-storage: 123722704Ki
    hugepages-1Gi: "0"
    hugepages-2Mi: "0"
    memory: 8174332Ki
    pods: "110"
    volcano.sh/gpu-memory: "89424"
    volcano.sh/gpu-number: "8"   # GPU resource

Running GPU Sharing Jobs​

NVIDIA GPUs can now be shared via container level resource requirements using the resource name volcano.sh/gpu-memory:

$ cat <<EOF | kubectl apply -f -
apiVersion: v1
kind: Pod
metadata:
  name: gpu-pod1
spec:
  schedulerName: volcano
  containers:
    - name: cuda-container
      image: nvidia/cuda:9.0-devel
      command: ["sleep"]
      args: ["100000"]
      resources:
        limits:
          volcano.sh/gpu-memory: 1024 # requesting 1024MB GPU memory
EOF

$ cat <<EOF | kubectl apply -f -
apiVersion: v1
kind: Pod
metadata:
  name: gpu-pod2
spec:
  schedulerName: volcano
  containers:
    - name: cuda-container
      image: nvidia/cuda:9.0-devel
      command: ["sleep"]
      args: ["100000"]
      resources:
        limits:
          volcano.sh/gpu-memory: 1024 # requesting 1024MB GPU memory
EOF

If only the above pods are claiming gpu resource in a cluster, you can see the pods sharing one gpu card:

$ kubectl exec -ti  gpu-pod1 env
...
VOLCANO_GPU_MEMORY_TOTAL=11178
VOLCANO_GPU_ALLOCATED=1024
NVIDIA_VISIBLE_DEVICES=0
...

$ kubectl exec -ti  gpu-pod1 env
...
VOLCANO_GPU_MEMORY_TOTAL=11178
VOLCANO_GPU_ALLOCATED=1024
NVIDIA_VISIBLE_DEVICES=0
...

Understanding how GPU sharing works​

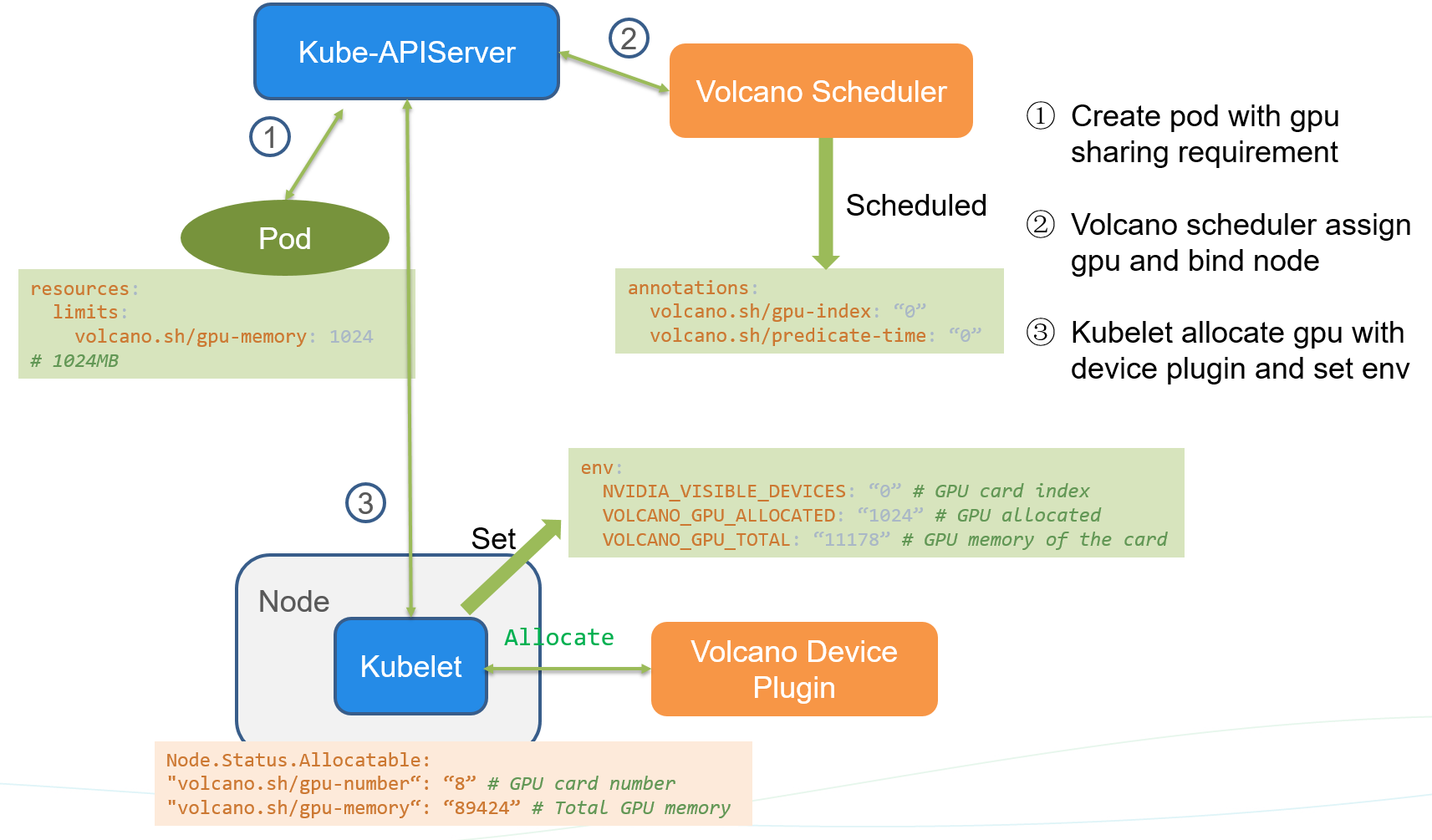

The GPU sharing workflow is depicted as below:

gpu_sharing

  1. create a pod with volcano.sh/gpu-memory resource request,

  2. volcano scheduler predicates and allocate gpu resource for the pod. Adding the below annotation

annotations:
  volcano.sh/gpu-index: "0"
  volcano.sh/predicate-time: "1593764466550835304"
  1. kubelet watches the pod bound to itself, and call allocate API to set env before running the container.
env:
  NVIDIA_VISIBLE_DEVICES: "0" # GPU card index
  VOLCANO_GPU_ALLOCATED: "1024" # GPU allocated
  VOLCANO_GPU_MEMORY_TOTAL: "11178" # GPU memory of the card
