GPU Virtualization

Last updated on Jun 24, 2025

Prerequisites

The list of prerequisites for running the Volcano device plugin is described below:

  • NVIDIA drivers > 440
  • nvidia-docker version > 2.0 (see how to install and it’s prerequisites)
  • docker configured with nvidia as the default runtime.
  • Kubernetes version >= 1.16
  • Volcano verison >= 1.9

Environment setup

Install volcano

Refer to Install Guide to install volcano.

After installed, update the scheduler configuration:

kubectl edit cm -n volcano-system volcano-scheduler-configmap

kind: ConfigMap
apiVersion: v1
metadata:
  name: volcano-scheduler-configmap
  namespace: volcano-system
data:
  volcano-scheduler.conf: |
    actions: "enqueue, allocate, backfill"
    tiers:
    - plugins:
      - name: priority
      - name: gang
      - name: conformance
    - plugins:
      - name: drf
      - name: deviceshare
        arguments:
          deviceshare.VGPUEnable: true # enable vgpu
      - name: predicates
      - name: proportion
      - name: nodeorder
      - name: binpack

Install Volcano device plugin

Please refer to volcano vgpu device plugin

Verify environment is ready

Check the node status, it is ok if volcano.sh/vgpu-memory and volcano.sh/vgpu-number are included in the allocatable resources.

$ kubectl get node {node name} -oyaml
...
status:
  addresses:
  - address: 172.17.0.3
    type: InternalIP
  - address: volcano-control-plane
    type: Hostname
  allocatable:
    cpu: "4"
    ephemeral-storage: 123722704Ki
    hugepages-1Gi: "0"
    hugepages-2Mi: "0"
    memory: 8174332Ki
    pods: "110"
    volcano.sh/vgpu-memory: "89424"
    volcano.sh/vgpu-number: "8"    # GPU resource
  capacity:
    cpu: "4"
    ephemeral-storage: 123722704Ki
    hugepages-1Gi: "0"
    hugepages-2Mi: "0"
    memory: 8174332Ki
    pods: "110"
    volcano.sh/vgpu-memory: "89424"
    volcano.sh/vgpu-number: "8"   # GPU resource

Running GPU Sharing Jobs

VGPU can be requested by both set “volcano.sh/vgpu-number” , “volcano.sh/vgpu-cores” and “volcano.sh/vgpu-memory” in resource.limit

$ cat <<EOF | kubectl apply -f -
apiVersion: v1
kind: Pod
metadata:
  name: gpu-pod1
spec:
  schedulerName: volcano
  containers:
    - name: cuda-container
      image: nvidia/cuda:9.0-devel
      command: ["sleep"]
      args: ["100000"]
      resources:
        limits:
          volcano.sh/vgpu-number: 2 # requesting 2 gpu cards
          volcano.sh/vgpu-memory: 3000 # (optinal)each vGPU uses 3G device memory
          volcano.sh/vgpu-cores: 50 # (optional)each vGPU uses 50% core
EOF

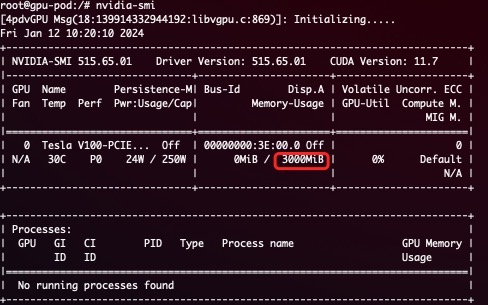

You can validate device memory using nvidia-smi inside container:


WARNING: if you don’t request GPUs when using the device plugin with NVIDIA images all the GPUs on the machine will be exposed inside your container. The number of vgpu used by a container can not exceed the number of gpus on that node.

Monitor

volcano-scheduler-metrics records every GPU usage and limitation, visit the following address to get these metrics.

curl {volcano scheduler cluster ip}:8080/metrics

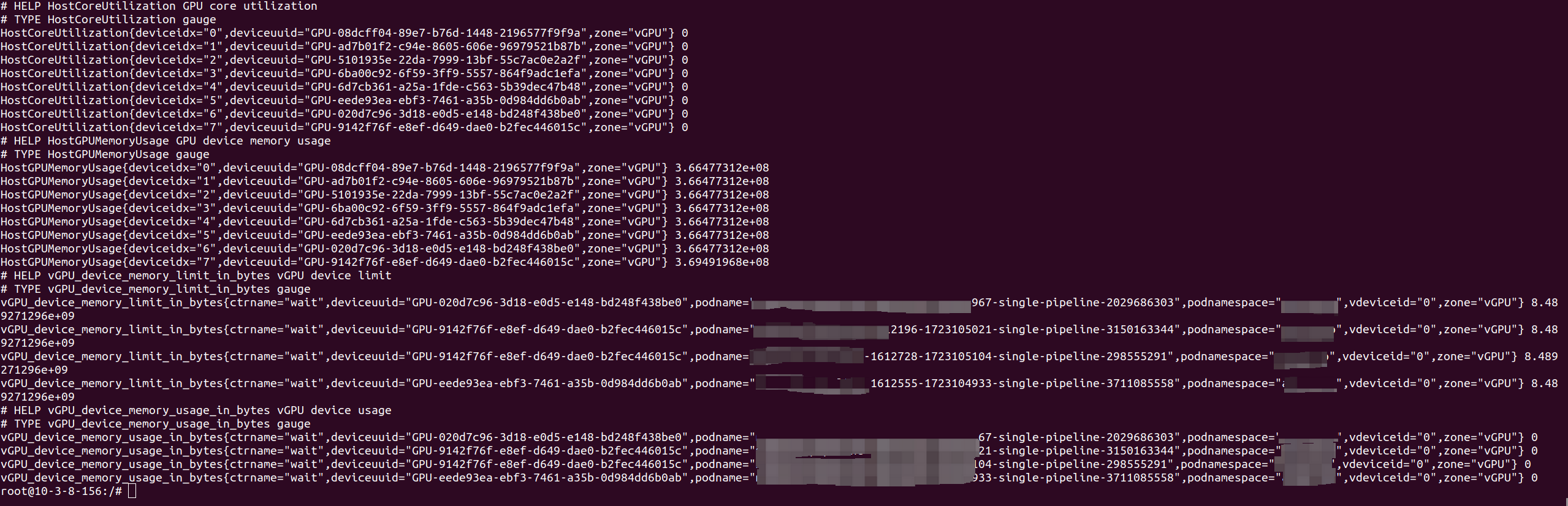

You can also collect the GPU utilization, GPU memory usage, pods’ GPU memory limitations and pods’ GPU memory usage metrics on nodes by visiting the following addresses:

curl {volcano device plugin pod ip}:9394/metrics
